•Grid electricity and battery power priority is optional.
•Higher charge current and adjustable.
•Communicate with our MPPT charge controller.
•Intelligent protection,higher class of security

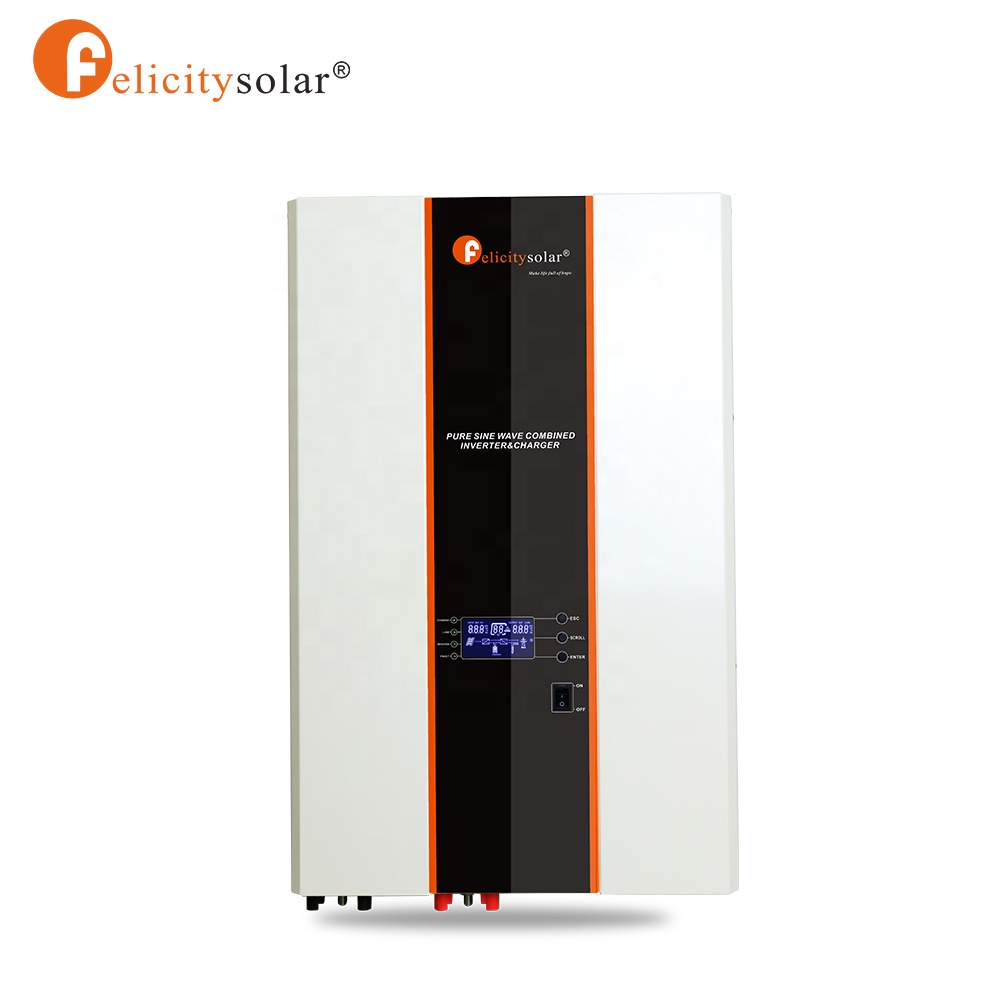

Felicitysolar 48V 230V 10KW Pure sine wave solar power inverter off grid built-in 120A MPPT solar charge controller
Product Description
Products Description
Features
•Build in 120A MPPT solar ontroller
•Build in AC charger.
•Build in battery reverse polarity protection.
•Adjustable charge current and output frequency.
•RS-232 communication interface.
•Generator has function of automatic control on and off.

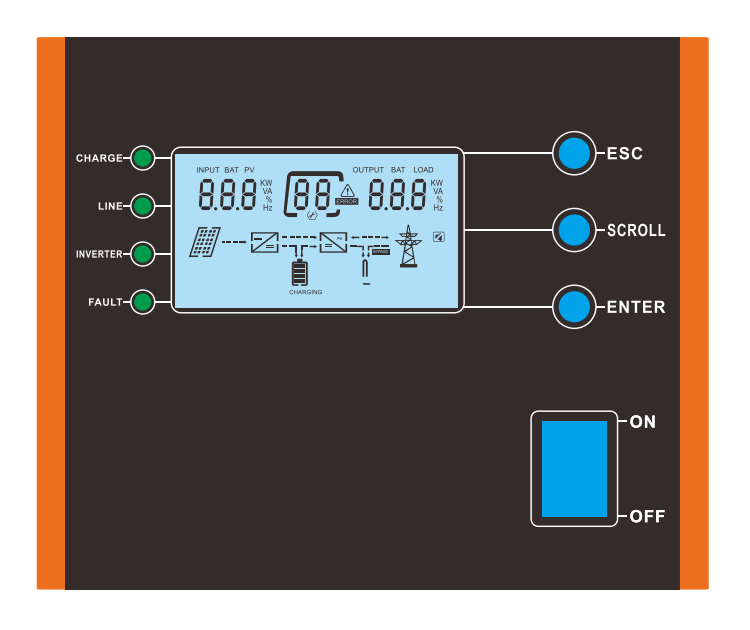

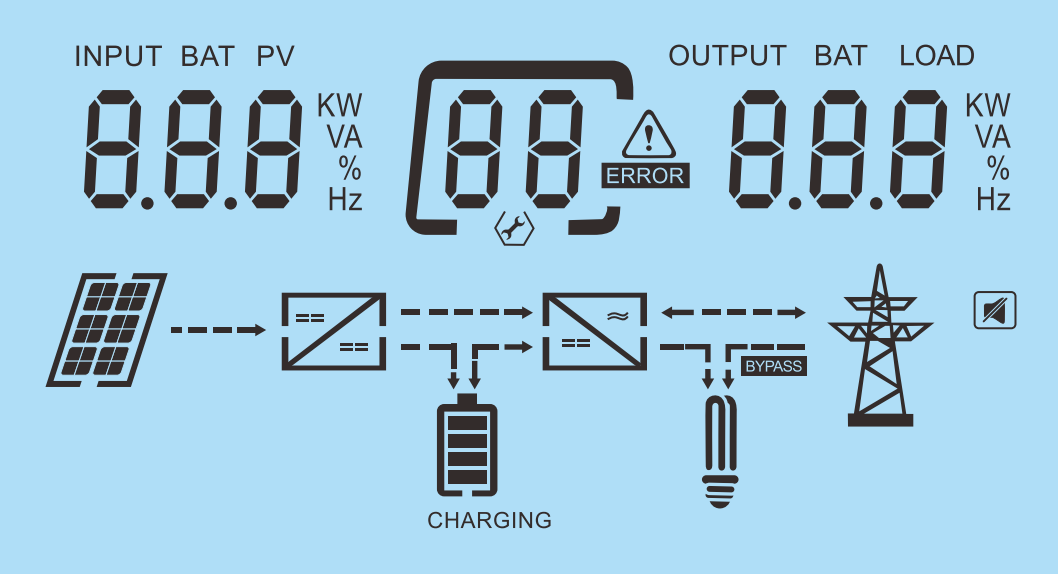

•Full function LCD and LED display.
•AC input and output protect switch.
•Build in battery temperature compensation interface.
•Automatic AC and PV charger after shutdown.
•Low frequency high reliable pure sine wave circuit architecture.
•Build in battery reverse polarity protection.
•Adjustable charge current and output frequency.
•RS-232 communication interface.
•Generator has function of automatic control on and off.
•Full function LCD and LED display.
•AC input and output protect switch.
•Build in battery temperature compensation interface.
•Automatic AC and PV charger after shutdown.
•Low frequency high reliable pure sine wave circuit architecture.
•8 types of batteries, three-stage intelligent charger
Product Advantages
•Bypass charging function,AC charge available When the unit off. •90-280V AC Widely input voltage.

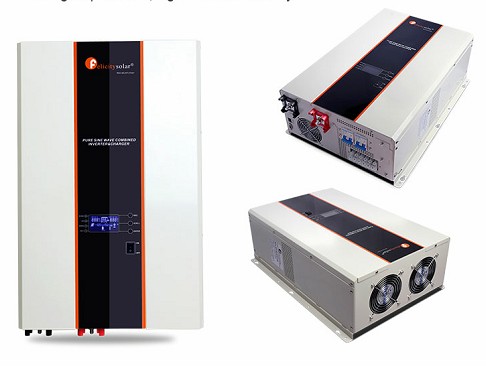

Details Images
Product Parameters
Model | IVPL10048 | |
DC Input Voltage | 48V | |
Rated output power(VA) | 10000VA 8000W | |
Rated output power(W) | 8000W | |
Input voltage waveform | Sine(public facility or generator) | |
Rated input voltage | 220vac | |
Grid low voltage | 90Vac±7Vac | |
Grid low voltagerecovery voltage | 100Vac±7Vac | |
Grid high voltage | 280Vac±7Vac | |
Grid high voltage recovery voltage | 270Vac±7Vac | |
Max input voltage | 280Vrms | |
Rated input frequency | 50Hz/60Hz | |
Grid underfrequency | 40±1Hz | |
Grid underfrequency recovery | 42±1Hz | |
Grid overfrequency | 65±1Hz | |
Grid overfrequency recovery | 43±1Hz | |
Output waveform | Synchronize with input voltage | |
Overload protection | Air switch protection | |
Output short circuit protection | Air switch protection | |
Efficiency(grid) | ≥95% | |
Switching time(AC TO DC) | 15ms Typical value | |
Switching time(DC TO AC) | 15ms Typical value/30ms special value | |
Through battery free | NO | |
Grid max bypass current | 60A | |
Charging parameter | ||
Rated input voltage | 220Vac | |
Input voltage range | 90-280Vac | |
Rated voltage output | Depending on batty type | |
Max charging current | 80A | |
Adjustable charging current range | 0-80A | |
Initial voltage of the battery | Breaker | |
Charging short circuit current | 63A | |
Breaker size | Dependent on battery type or self-defined | |
Overcharge protection | Yes | |
MPPT Charging&Grid Charging(MPPT built-in controller is option) | ||
Max PV open circuit voltage | 195V | |
PV voltage working range | 60-195VDC | |
Max input power | 6600W | |
Max mains charging current | 120A | |
Max charging current(mains+solar energy) | 200A | |

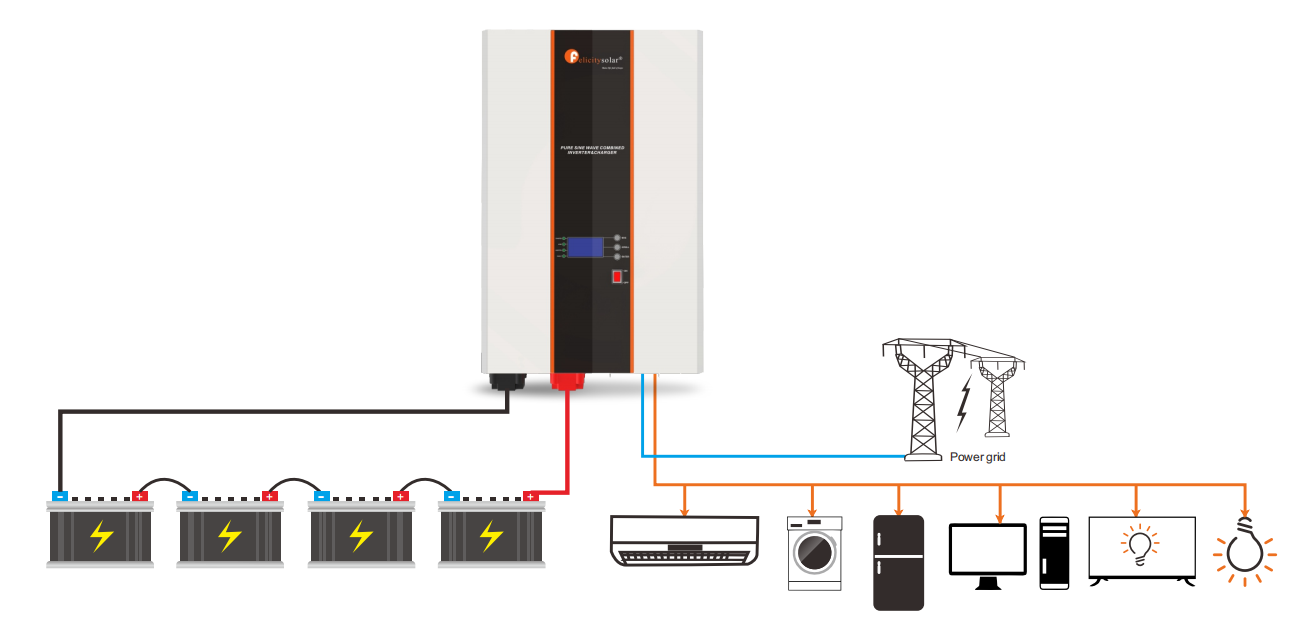

Application in Solar Power Syetem

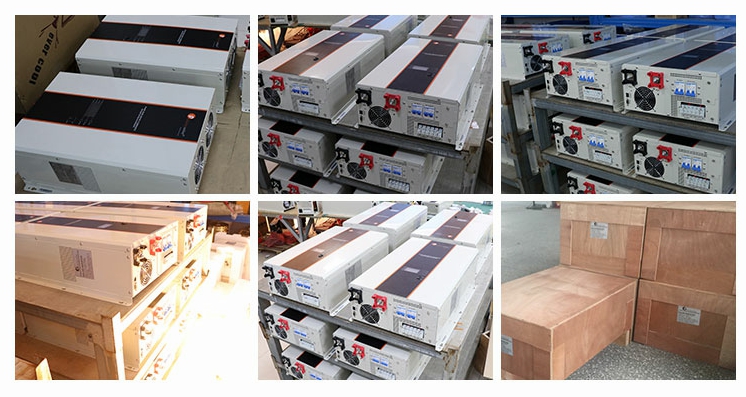

Product packaging
FAQ
1.How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and
capacitive loads, we recommend using pure sine wave Power inverter .
2.How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
3.How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's
condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and
capacitive loads, we recommend using pure sine wave Power inverter .
2.How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
3.How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's
condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
4. How's your quality control system?
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
5. How's the lead time and services?
-- Fast Delivery in 10 days
-- 8h response & 48h solution
6. How's your R&D ability?
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
5. How's the lead time and services?
-- Fast Delivery in 10 days
-- 8h response & 48h solution
6. How's your R&D ability?
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
Payment Terms
We support wide range of secure & reliable payment methods like T/T, L/C, West Union, E-checking, Paypal and so on. Please choose your preferred payment method from those listed below.
Payment Terms | T/T or Cash | EXW | ||
FOB | ||||
CFR (C&F) | ||||
CIF | ||||
Payment Terms | L/C | For the amount more than US$90,000 payment, we can accept L/C | ||
Paypal | For the amount less than US$2,000 payment, we can accept Paypal , West Union or MoneyGram | |||
West Union | ||||
MoneyGram | ||||
Credit card or E-checking | Place a Alibaba Trade Assurance Order | |||
Payment Terms | T/T or Cash | EXW | ||
FOB | ||||
CFR (C&F) | ||||
CIF | ||||
Payment Terms | L/C | For the amount more than US$90,000 payment, we can accept L/C | ||
Paypal | For the amount less than US$2,000 payment, we can accept Paypal , West Union or MoneyGram | |||
West Union | ||||
MoneyGram | ||||
Credit card or E-checking | Place a Alibaba Trade Assurance Order | |||
Payment Terms | T/T or Cash | EXW | ||
FOB | ||||
CFR (C&F) | ||||
CIF | ||||
Payment Terms | L/C | For the amount more than US$90,000 payment, we can accept L/C | ||
Paypal | For the amount less than US$2,000 payment, we can accept Paypal , West Union or MoneyGram | |||
West Union | ||||
MoneyGram | ||||
Credit card or E-checking | Place a Alibaba Trade Assurance Order | |||
