Felicity solar DC / AC 12V 220V 3500va Off-grid pure sine wave solar power inverter

Product Description

Product Series
Model
FL-IVPL-2512
FL-IVPL-3524
FL-IVPL-3548
FL-IVPL-5048
FL-IVPL-7548
Line mode specification





Input Voltage Waveform
Pure Sine Wave (Utility or Generator)




Nominal Input Voltage
110V-120V / 220V- 240V




Max AC Input Voltage
140V / 280V
Nominal Input Frequency
50Hz / 60Hz (Auto detection)
Output Voltage Waveform
As same as input waveform
Inverter Mode Specification
Output Voltage Waveform
Pure Sine Wave
Rated Output Power
2500VA
3500VA
3500VA
5000VA
7500VA
Nominal Output Voltage
110V-120V / 220V- 240V ± 5%
Nominal Output Frequency
50Hz / 60Hz ±0.3Hz
Nominal Efficiency
85%
Nominal DC Input Voltage
12V
24V
48V
48V
48V
Charge Mode Specification
MAX Charge Current
35A
35A
30A
40A
50A
Charge Current Regulation
Charge current adjustable: 25%, 50%, 75%, 100%(Optional)
Battery Type Selection
Select the right type of battery to charge (e.g: GEL, AGM, Open lead acid, Sealed lead acid, etc )
Charge Algorithm
Three stage: Boost CC (constant current stage)---Boost CV (constant voltage stage)---Float(contact voltage stage)

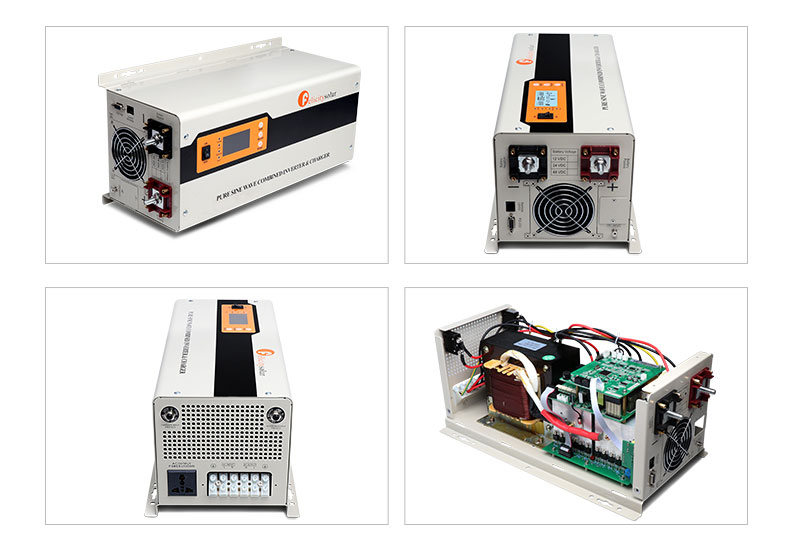

Product features
Product advantages
1) Bypass charging function,AC charge available when the unit off. 2) 90-280V AC widely input voltage. 3) Grid electricity and battery power priority is optional. 4) Higher charge current and adjustable. 5) Communicate with our MPPT charge controller. 6) Intelligent protection, higher calss of security.

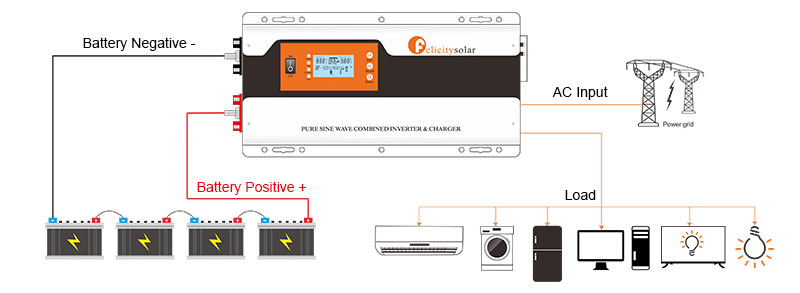

Connect diagram

Installation Procedure:

1. Insure the DC voltage of inverter in accordance with the battery voltage.
2. Insure the positive pole (red)of inverter connect with the positive pole (red) of battery, and the negative pole (black) of
inverter connect with the negative pole (black) of battery, then tighten the screw.
3. Turn on the inverter and see if it is good, if good then turn off.
4. Connect with AC power / Ground wire, turn on the inverter and see if it is working normally (charge the battery, show charge
current) if so, turn off the inverter.
5. Connect with the load/ground wire and turn on the inverter (Power saver auto or Power saver off ).
6. Turn on the Load.

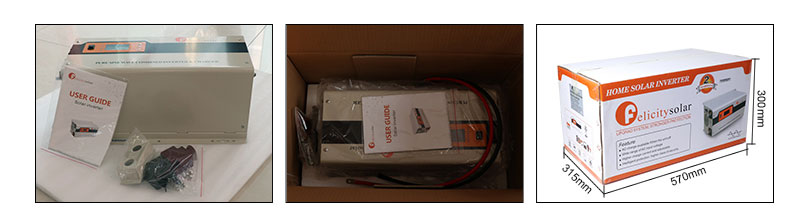

Product packaging
Related Products

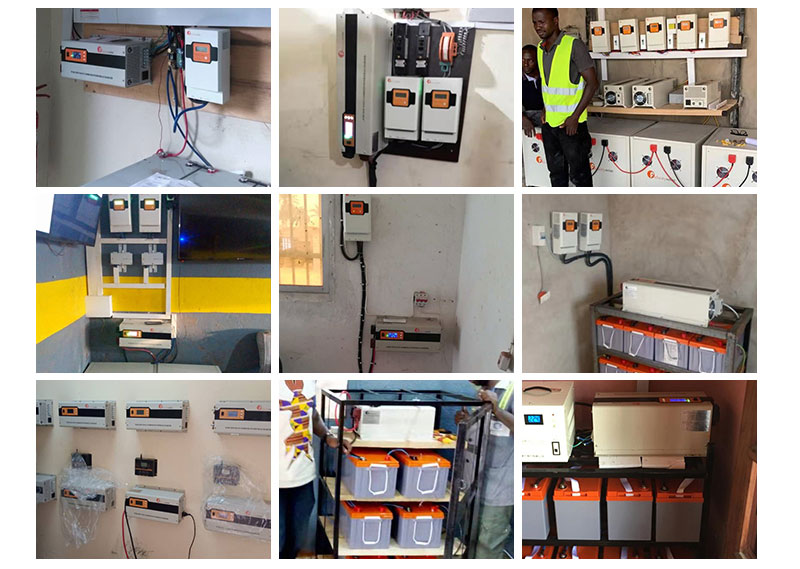

Product Applications
Production line
Our Company
Felicitysolar was found in 2007 possessed deep pockets and the professional ability of technology and had formed many modern solar
panel production lines, LED Street Light production lines and the testing systems for solar power and lighting.
Certifications
Packing&Delivery
FAQ

Q:How about the lifespan of your battery?

A:Felicitysolar battery lifespan is more than 2 years.

Q:What kind of your battery?

A:Felicitysolar battery is GEL battery, better than lead acid battery.

Q:What should I notice while I'm using the battery?

A:Before you use it, please ensure it's full charging.

Q:When the battery is not using for a long time, what should I do?

A:You should charge it full at first.

Q:What is MOQ of the battery?

A:1pc for sample is ok.

Q:What is the terms of payment?

A:T/T, L/C,western union, paypal or cash; 30% for deposit, the balance 70% before shipment.

Q:What is the warranty?

A:We offer 2 years warranty for the battery.

Q:What is the delivery time?

A:3 work day with stock after receiving the payment. No stock, 25 work days after receiving the payment.
