Solar Agm Battery 100AH 150AH 200AH 250AH Solar Battery industrial solar battery for solar system
Product Description
Solar Agm Battery 100AH 150AH 200AH 250AH Solar Battery industrial solar battery for solar system
Product Introduction
A solar battery is a rechargeable battery that integrates a solar cell with battery power storage.
A second meaning of solar battery are rechargeable batteries which have been developed specifically for use in photovoltaic systems or are just used for.
They are used especially in stand-alone systems for storage of energy produced by solar panels and batteries as a buffer when major consumer operation. Often, the term is also commonly used for built-in solar power applications batteries, even if they are not specified for it.
They are used especially in stand-alone systems for storage of energy produced by solar panels and batteries as a buffer when major consumer operation. Often, the term is also commonly used for built-in solar power applications batteries, even if they are not specified for it.
Product Parameters
Model | FL-G-100AH12V | FL-G-150AH12V | FL-G-200AH12V | |||||||
Rated Capacity(10hour Rate) | 100Ah | 150Ah | 200Ah | |||||||
Dimensions | 216*330*171mm | 241*483.5*170mm | 219*552*240mm | |||||||
Weight | 28.5 kg | 39 kg | 57.5 kg | |||||||
Characteristics capacity 25℃（77.℉） | 10 hour rate(10.0A) | 100AH | 10 hour rate(10.0A) | 150AH | 10 hour rate(10.0A) | 200AH | ||||
5 Hour rate(16.0A) | 80AH | 5 Hour rate(16.0A) | 120AH | 5 Hour rate(16.0A) | 160AH | |||||
1 hour rate(60A) | 60AH | 1 hour rate(60A) | 90AH | 1 hour rate(60A) | 120AH | |||||
1.5 hour discharge to 10.5V | 40AH | 1.5 hour discharge to 10.5V | 60AH | 1.5 hour discharge to 10.5V | 80AH | |||||
Charge (Constant voltage) | Initial charging current less than 30A Voltage 14.4-14.8V (14-16 hours) | Cycle | Initial charging current less than 45A Voltage 14.4-14.8V(14-16 hours) | Cycle | Initial charging current less than 60A Voltage 14.4-14.8V (14-16 hours) | Cycle | ||||
Float | 13.5-13.8V | |||||||||
Capacity affected by temperature(10 hour rate) | 40℃104℉ | 102% | ||||||||
25℃77℉ | 100% | |||||||||
0℃32℉ | 85% | |||||||||
-15℃5℉ | 65% | |||||||||
Self-Discharge at 25℃77℉ | Capacity after 3 month storage | 91% | ||||||||
Capacity after 6 month storage | 82% | |||||||||
Capacity after 12 month storage | 64% | |||||||||
Terminal | T10 | T11 | T11 | |||||||
Details Image
Pruoduction Line
Material Advantage
1.Plates:1% higher than the average content of tin plate, effectively prevent corrosion and sulfide of the plate.
2.Electrolyte:Silicon-containing salt composition, effectively prevent the battery from dehydration.
3.Paper separator:using domestic top brands, a variety of materials certification.
4.Terminals:All copper materials, there are many other battery suppliers using lead terminals.
5.Battery products:enough plate number, enough battery capacity, enough weight.
2.Electrolyte:Silicon-containing salt composition, effectively prevent the battery from dehydration.
3.Paper separator:using domestic top brands, a variety of materials certification.
4.Terminals:All copper materials, there are many other battery suppliers using lead terminals.
5.Battery products:enough plate number, enough battery capacity, enough weight.
GEL batteries Benefits
1. Solve electrolyte stratification, sulfuric acid evenly distributed.
2. The silica gel electrolyte lead-acid batteries can be so deep discharge, thus greatly extending the cycle life of the
battery.
3. The battery float current is small (about 1/3 AGM battery), the floating charge lower energy consumption, less warming,
reduce battery thermal runaway risk.
4. low self-discharge rate of the battery.
2. The silica gel electrolyte lead-acid batteries can be so deep discharge, thus greatly extending the cycle life of the
battery.
3. The battery float current is small (about 1/3 AGM battery), the floating charge lower energy consumption, less warming,
reduce battery thermal runaway risk.
4. low self-discharge rate of the battery.

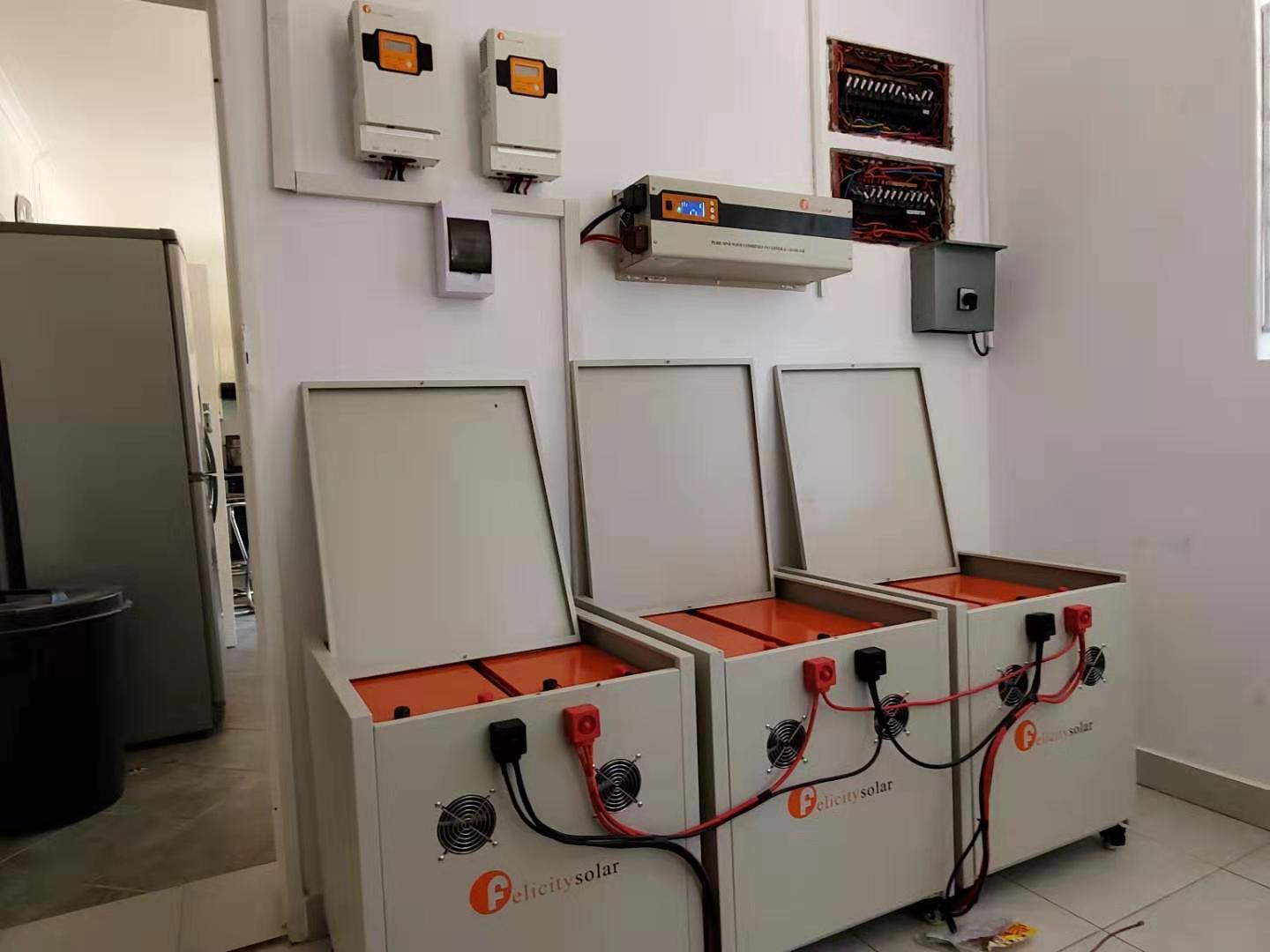

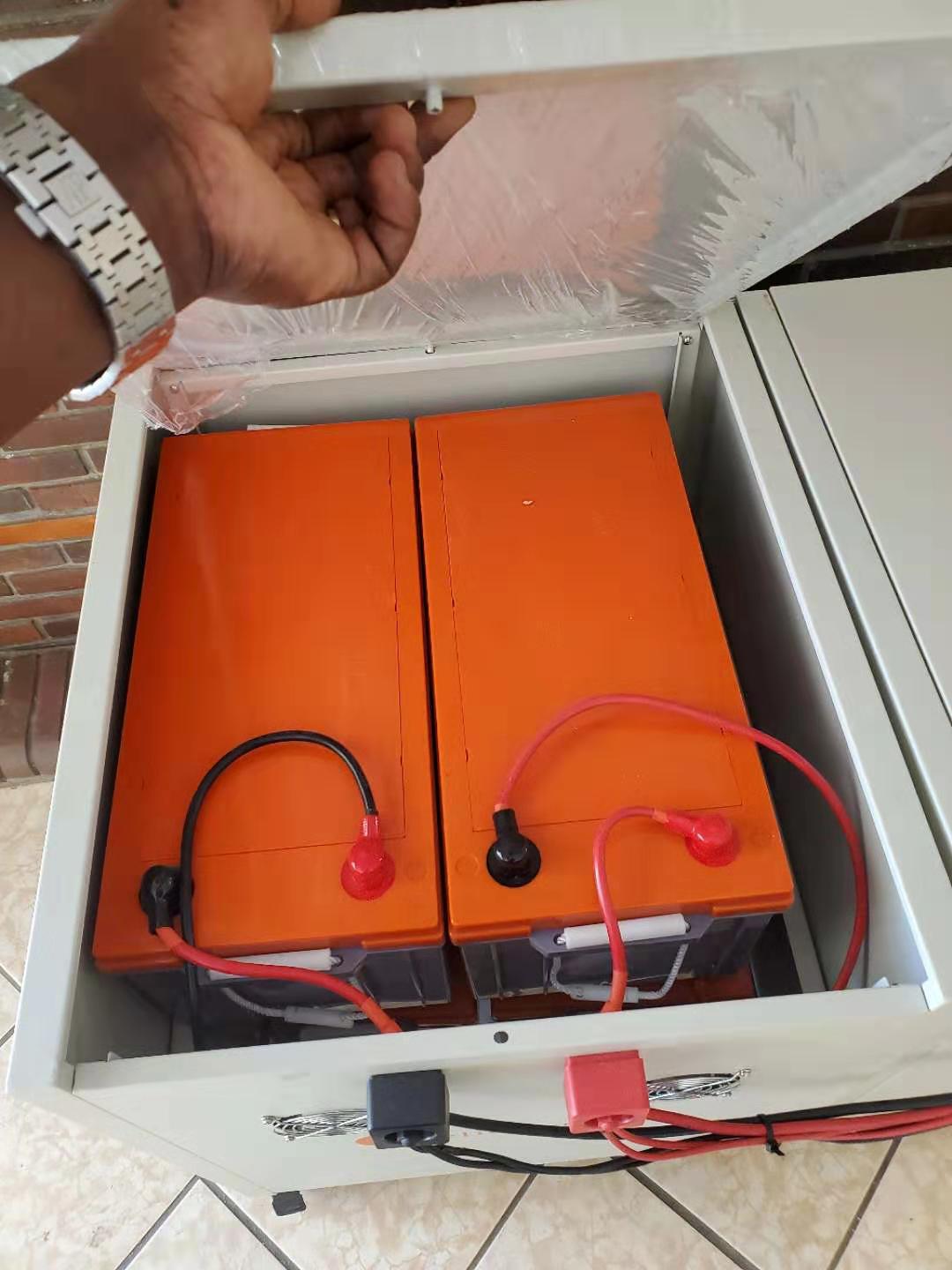

Product Application
